APIC – Getting start - (Advanced Concepts)

CPU Affinity

CPU affinity determines which physical CPU core(s) the Sim Engine is allowed to run on. Real-time applications use affinity to avoid context switching and prevent the OS from moving the thread between cores.

Why CPU Pinning Matters

• Eliminates cross-core migration latency
• Reduces L1/L2 cache invalidations
• Provides consistent timing and lower jitter
• Ensures predictable frame start times

Recommended Setup

For high-performance simulations:

Windows

Set the simulation loop thread to:

• A dedicated core
• Highest real-time priority
• Multimedia Class Scheduler Service (MMCSS) if needed

Linux

Use low latency or RT kernel

Pin using sched_setaffinity() and set a real-time scheduling policy like SCHED_FIFO.

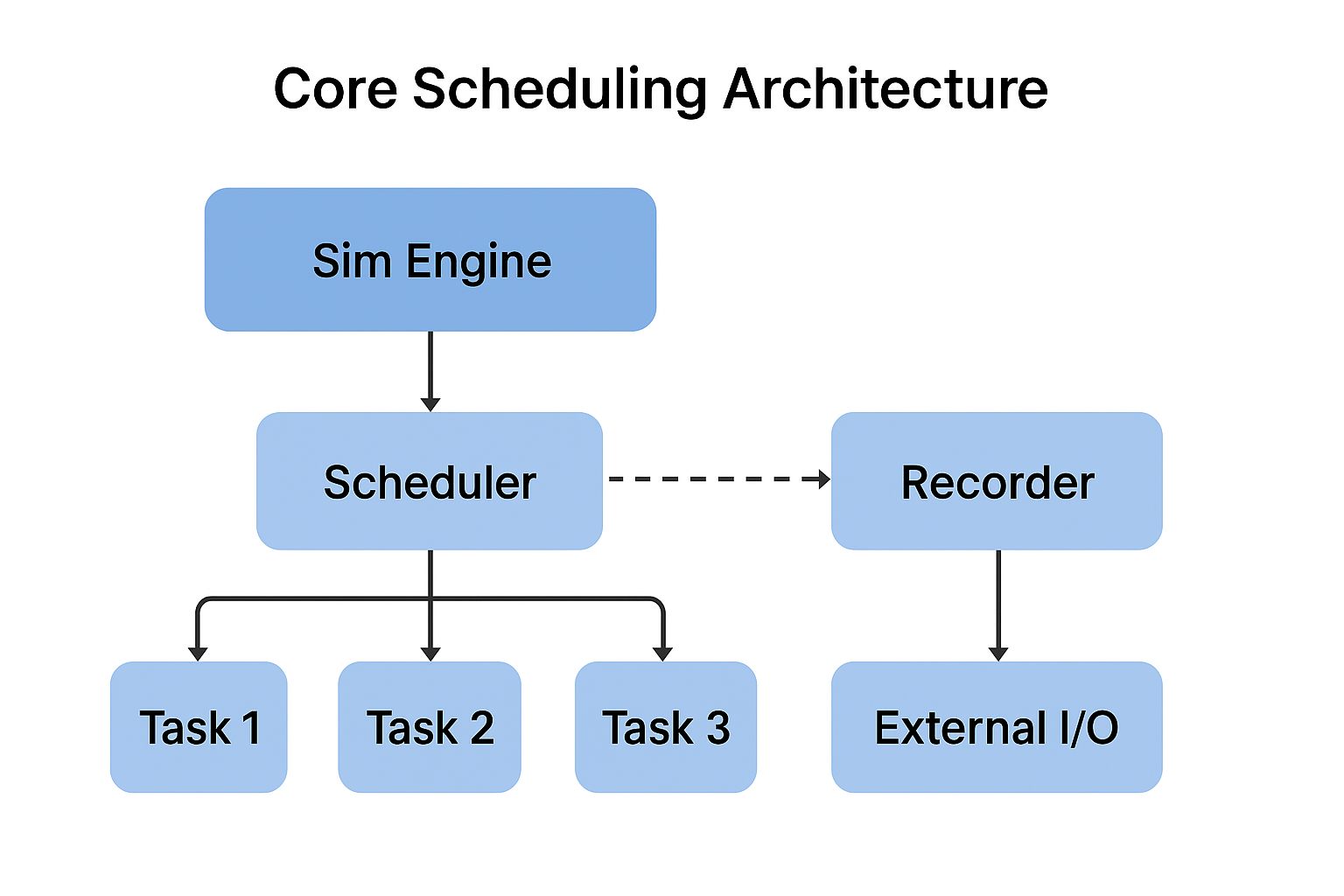

Dedicated Core Strategy

Ideal setup for a 4-core CPU:

This eliminates interference and minimizes jitter.

Real-Time OS Tuning

Real-time performance can be heavily improved by tuning the OS behavior.

Windows Tuning

Enable HPET/Disable HPET (depending on your CPU)

Different CPUs benefit from different timer modes. Always benchmark:

bcdedit /set useplatformclock yes bcdedit /set useplatformclock no

Use MMCSS for soft real-time

Use the Multimedia Class Scheduler Service to achieve lower jitter:

AVStream Pro Audio settings High-priority thread groups

Disable core parking

Prevents Windows from migrating your thread to a waking core.

Disable dynamic frequency scaling

Use High Performance power plan. Enable 100% minimum CPU frequency.

Linux Tuning

Use PREEMPT_RT kernel

This gives OS-level deterministic execution.

Disable power-saving features

Disable:

• C-states beyond C1
• P-states / CPU frequency scaling (use performance governor)

bash
    sudo cpupower frequency-set -g performance


Disable IRQs on your dedicated core

Offload interrupts to non-critical cores:

bash
    /proc/irq/*/smp_affinity


Isolate the core

Boot parameters:

ini file
    isolcpus=2 nohz_full=2 rcu_nocbs=2


Lock memory

Avoid page faults:

CPP
    mlockall(MCL_CURRENT | MCL_FUTURE);


These strategies together dramatically reduce jitter and increase determinism.

Lockless Pipeline

A lockless design minimizes thread stalls and avoids unpredictable mutex behavior.

Why lockless?

No mutex lock/unlock overhead No priority inversion issues No OS scheduler interference Perfect for real-time producer-consumer models

Common Lockless Patterns

Single-producer / single-consumer ring buffer Atomic flags Double-buffering Atomic sequence counters Lockless queues (MPSC, SPSC)

Sim Engine Recording Example

The optimal recording pipeline is:

JAVA
Frame Loop (Producer)
   → Lockless ring buffer
        → Recording Thread (Consumer)


Producer writes one frame worth of data at a time. Consumer flushes data whenever possible.

Double Buffer Technique

Use two buffers:

Write Buffer (real-time thread) Read Buffer (background thread)

Every frame, swap pointers atomically:

CPP
    if (!busy.load()) {
        swapBuffers();
        busy.store(true);
    }


Zero locks. Zero stalls.

Memory Management Rules

Real-time systems must avoid operations that can cause unpredictable delays.

DO NOT inside the real-time loop:

Allocate memory (new, malloc, std::vector::resize) Throw exceptions Use STL containers that may reallocate Free memory (delete, free) Use filesystem I/O Use dynamic formatting (std::string growth)

DO outside or before the loop:

Pre-allocate all buffers Pre-load configurations Reserve container capacity Pre-generate lookup tables Use object pools or fixed-size memory blocks

Memory Locking

Lock all pages:

CPP
    mlockall(MCL_CURRENT | MCL_FUTURE);


Prevents the OS from paging anything to disk.

Multi-Rate Scheduling

Not all tasks need to run at the main frame rate. The Sim Engine can support tasks running at:

1x rate (e.g., 1000 Hz) Sub-rate (e.g., every 10 frames = 100 Hz) Super-rate (if needed)

How Multi-Rate Scheduling Works

At each frame:

CPP
    if (frameId % 10 == 0)
        run_100Hz_task();
    if (frameId % 2 == 0)
        run_500Hz_task();
    run_1000Hz_task(); // always runs


Use Cases

High-rate: sensor fusion, inner control loops Mid-rate: physics models, PID controllers Low-rate: logging, UI updates, communications

Design Strategy

Assign your most time-critical code to the highest rate Move heavy but non-critical logic to lower rates Do not mix I/O and compute-heavy tasks in the same rate unless necessary

Simulation Determinism Theory

Simulation determinism means:
The same input sequence produces the same outputs every time.

In a real-time engine, determinism depends on:

Fixed time steps

No variable dt (delta time). All updates run at constant time intervals.

Deterministic execution order

All tasks must run in the same order every frame.

No race conditions

Avoid shared mutable state between threads unless lockless or protected.

No nondeterministic sources

Random number generators must be seeded Avoid OS time inside the loop Avoid async callbacks modifying simulation state

Consistent floating-point behavior

Avoid FMA differences across compilers Avoid multi-thread FP races Use SIMD deterministically Beware of cross-platform FP rounding differences

Avoid hardware-dependent behavior

Set CPU affinity Use real-time scheduling policies Stabilize frequency scaling
